Miniature 3 OPENING 2-WAY SOLENOID

1. Small size, simple construction & easy assembly.
2. Water proof coil available when required.
3. Valves for fluid with temp. over 80℃ available when required.

Normally Closed Valve Pipe Size: 1/4"~3/8" P.T. or N.P.T. For Fluid: Water, Air & Vacuum

Specifications

1. DA type 3 opening solenoid is direct
   operation.
2. Elrctrify 1 --> 2 Through, Closed 2 --> 3
    Through.
3. Apply to press diff 0~10 Kg/c㎡.
4. Standard  voltage: AC 110V/220V
     (50 / 60 Hz).
5. Other voltage of AC/DC available when
    required.

Items of Attention

3. Not for fluid of:
    a) viscosity over 50 cst.
    b) liquid when heat, solid when cool.
    c) corrosive fluid.

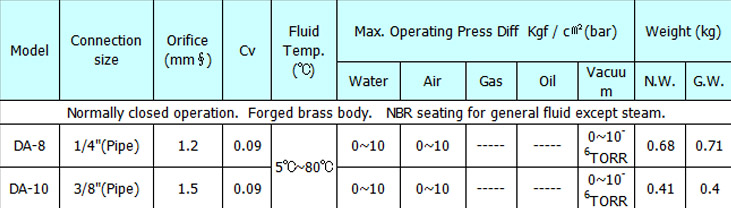

Specifications

Electrical Information
