Miniature  2-WAY SOLENOID

1. Small size, simple construction & easy assembly.
2. Water proof coil available when required.
3. Not for fluid of:
    a) viscosity over 50 cst.
    b) liquid when heat, solid when cool.
    c) corrosive fluid.
4. Valves for fluid with temp. over 80℃ available when required.

Normally Closed Valve Pipe Size: 1/8"~3/8" P.T. or N.P.T. For Fluid: Water, Air, Gas, Oil & Vacuum

Specifications

1. 2-way normally closed solenoid valve.
2. Forged brass body, direct operation.
3. Installation: Mountable in any position
   without affecting operation.
4. Standard  voltage: AC 110V/220V
   (50 / 60 Hz).
5. Other voltage of AC/DC available when
    required.
6. Voltage is with ±10% differential.

Items of Attention

1. Not for fluid of viscosity over 50 cst.
2. Not for liquids that solidify when cool.
3. Not for Corrosive fluid.
4. Pipes must be washed neat and clean
    before fitted.
5.. A Y-STRAINER has to be installed in
    the front of solenoid  valve, that is best
    for long life.
6. Use in Gas and Oil can use G type
    diaphragm.

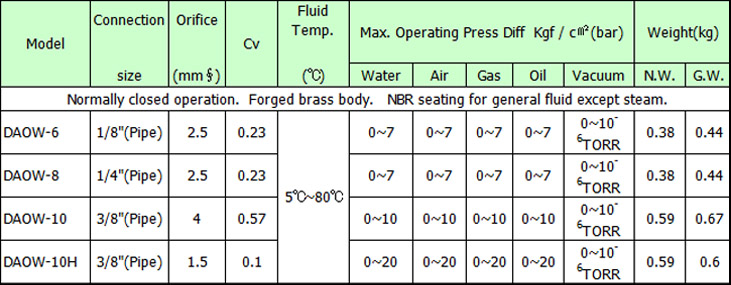

Specifications

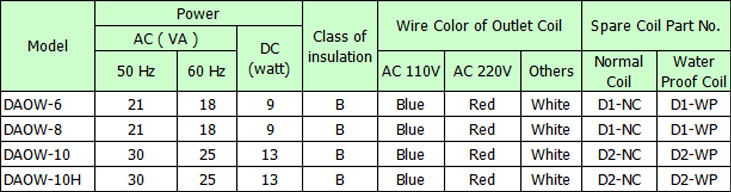

Electrical Information
