LITTLE FLOW 2-WAY SOLENOID VALVES

1. Small Size, simple structure, and simple assembly
2. High temperature tolerance.
3. Versatile pipe connection angles

Normally closed solenoid valve, connection size : 3/8"~1/2" (Pipe) For Fluid : Water, Air, Steam, Oil.

Specifications

1. 2-way normally closed solenoid valve.
2. Forge brass body  with linear operation mode.
3. Standard voltage: AC 110V / 220V (50 / 60Hz).
4. Other voltage of AC/DC available when required.
5. Voltage is white  ±10％ differential.

Items of Attention

1. Pipes must be washed neat and clean before fitted.
2. A strainer has to be installed in the front of solenoid
    valve, that is best for long life.
3. Viscosity level should not be too high.
4. Not suitable for liquids that solidify when cool.
5. Not suitable for corrosive fluids.

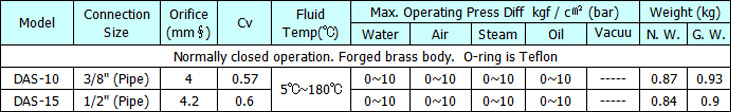

Specifications

Electrical Information

Wei-En Electric Machinery Co. Ltd.   - We are a Taiwan manufacturer of solenoids, valves, actuators and accessories
Our solenoids and actuators have certifications in  CE, cUL, CSA, ISO 9001, IP67
