LARGE FLOW COMMON USE TYPE 2-WAY SOLENOID VALVES

1. Hi performance, high flow, little electric power required.
2. Water proof coil available when required.

Normally closed solenoid valve, connection size : 1/2"~2-1/2" (Pipe). Flange connection size : 1/2"~6" For Fluid : Water, Air, Hot Water, Steam, Oil.

Specifications

1. Bodies of valves with mouths which are 1-1/4" or less are bronze; bodies of those with mouths 2" or greater are cast iron.
2. Horizontal piping and double acting piston.
3. Standard voltage: AC 110V / 220V
    (50 / 60Hz). Other voltage of AC/DC
    available when required. Voltage
    is white  ±10％ differential.

Items of Attention

1. Not for fluid of viscosity over 50 cst.
2. Not for liquids at solid state when cool
3. Not for Corrosive fluid.
4. This type of solenoid valve has come no
     leak.
5. This type can be pipe-fitted on needed
    direction.
6. A steam strainer or filter has to be
    installed one meter away from the
    solenoid valve. And the pipes must be
     washed neat and clean before fitting.
7. A strainer has to be installed in the front
    of solenoid valve, that is best for long
    life.

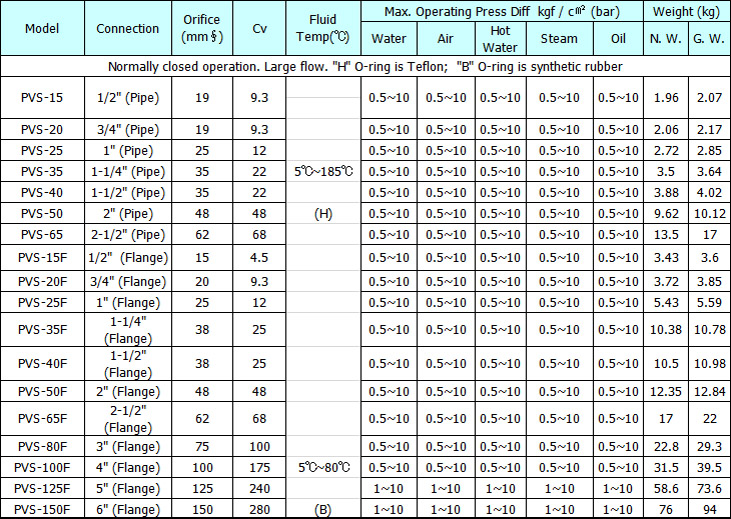

Specifications

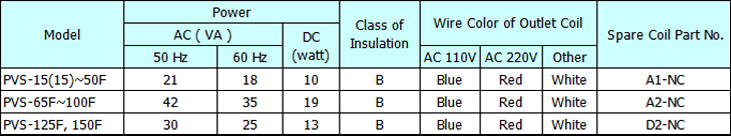

Electrical Information

Wei-En Electric Machinery Co. Ltd.  - We are a Taiwan manufacturer of solenoids, valves, actuators and accessories
Our solenoids and actuators have certifications in  CE, cUL, CSA, ISO 9001, IP67
