LARGE FLOW COMMON USE TYPE

1. Suitable for air, light oil,; for filtered heavy oil heating is required.
2. Useful for high-frequency usage applicaitons.

Normally closed solenoid valve, connection size : 1/4"~1/2" For Fluid : Air, Light Oil, Heavy Oil.

Specifications

1. PAO Model  is a double acting piston type.
2. Operating pressure is  0.3~15kg / c㎡.
3. Standard voltage: AC 110V / 220V (50 / 60Hz). Other voltage of AC/DC available when required.

Items of Attention

1. When connecting, ensure that the piping is cleaned of any foreign debris
2. A strainer has to be installed in the front
    of solenoid valve, that is best for long life.
3. Not suitable for liquids which solidify when cool.
4. Not suitable for corrosive or high-temperature liquids.

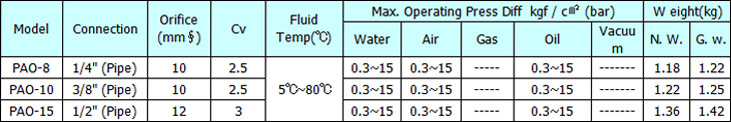

Specifications

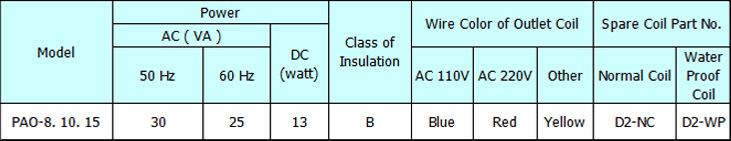

Electrical Information
